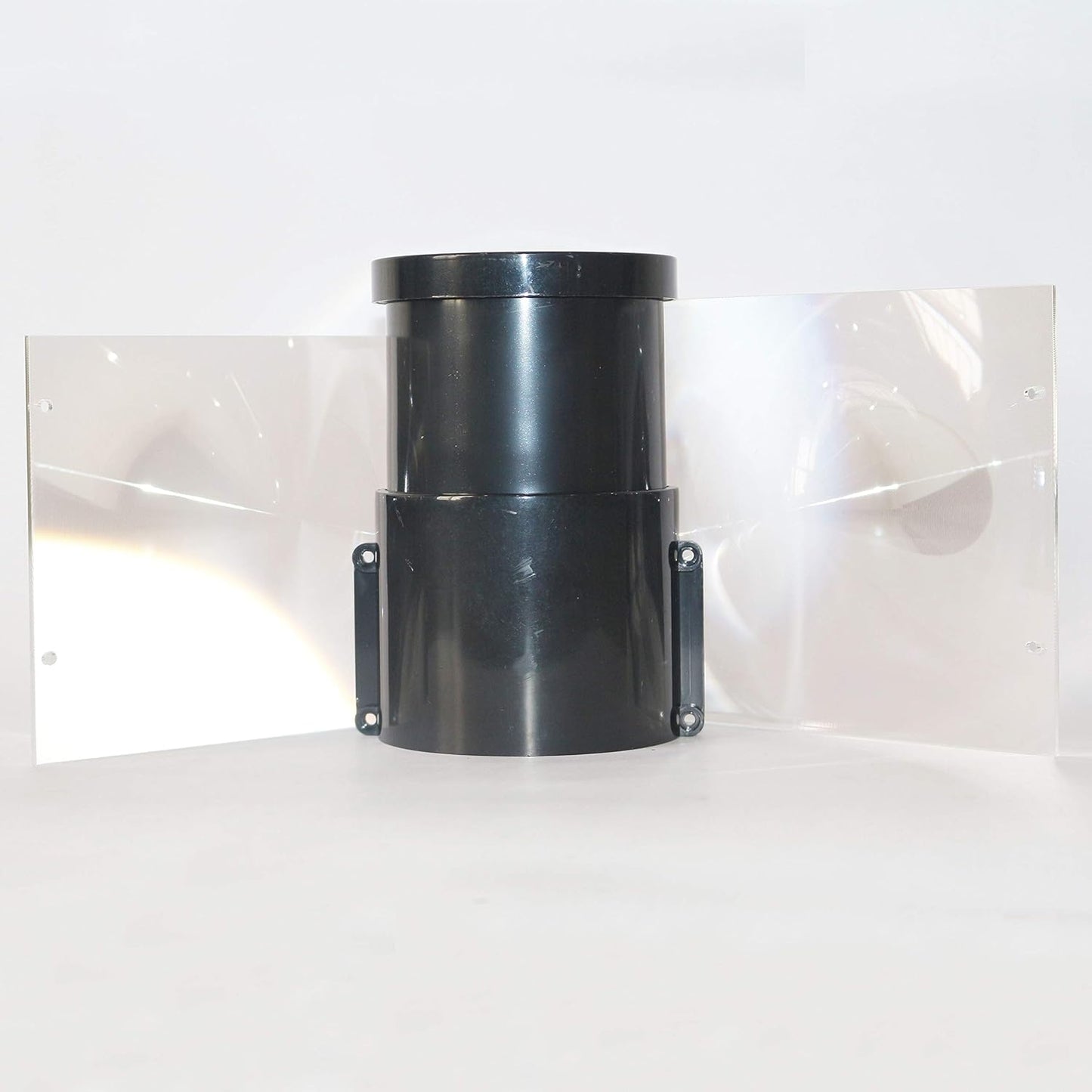

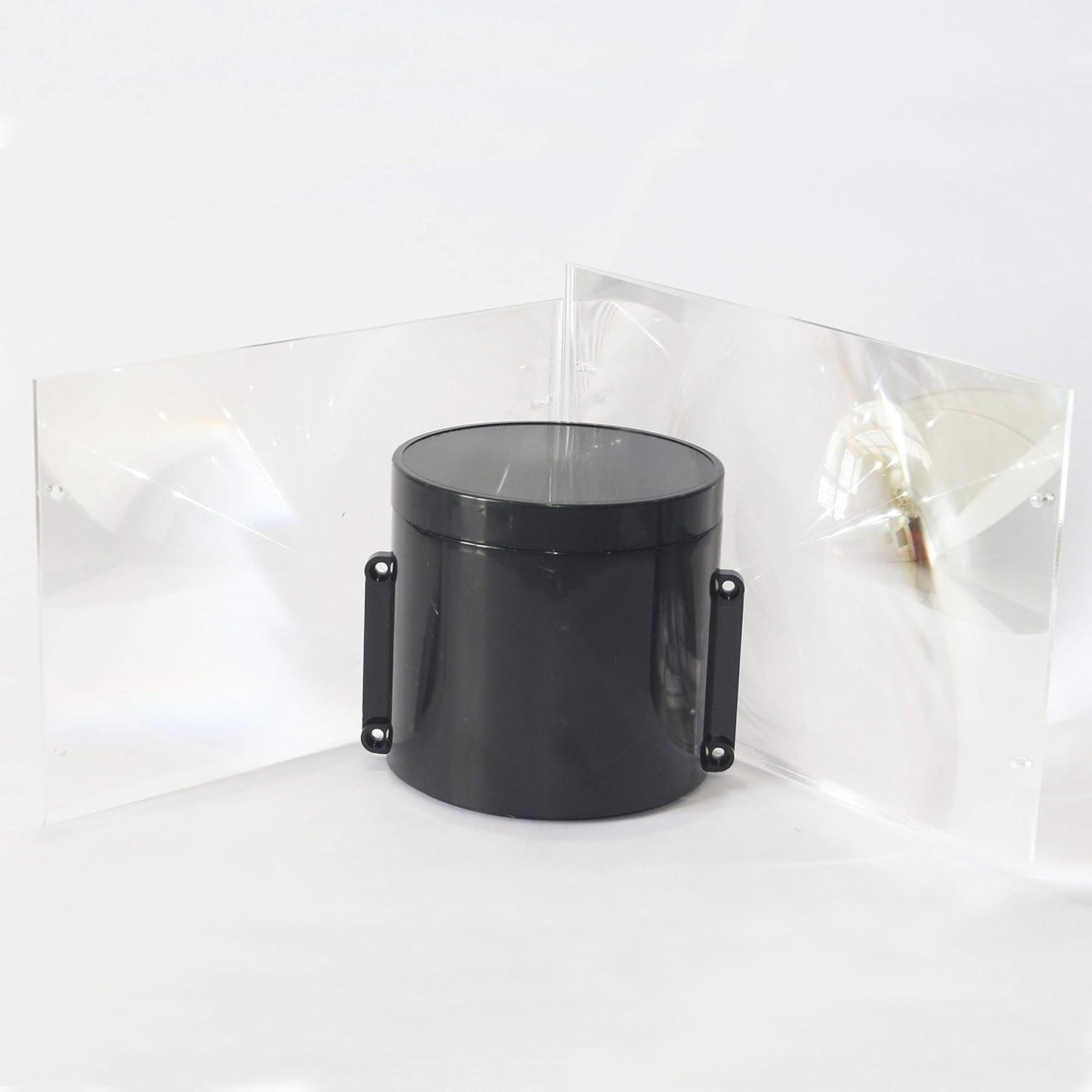

DIY Projector Optics Kit F200 Triplet Projection Lens 120m Frensel 185mm Fresnel

200mm Projection Lens

• Fixed Focal Length: F200mm
• Outer diameter: 90mm
• Lens Diameter (Aperture): 75 mm
• Focus range: 45mm
• Material: Strong Aluminium and Strong Plastic
• Coating Material: Coating 420-680nm multi layer broadband anti-reflection coatings
• Control Standards: Diameter: +0 /-1%. Focal Length: +/- 1.5%

Fresnel Lenses:

• Focal Length: F120mm Back Fresnel,
• Focal Length: F185mm Front Fresnel,
• Material: PMMI Material
• Thickness: 2mm
• Groove Pitch: 0.3
• F120 Size: 185mm X 130mm with mounting holes.
• F185 Size: 180mm X 120mm with mounting holes.

We are DIY Projector Hobbyist having indepth knowledge about all the components for excellent output, We continue to research and improve the best Quality and Performance of the Projector, We put our experience to get you the latest and best quality products in all aspects. Please reach us for any clarification in building your own projector.
