150W LED 19500 Luminous High Power LED and Power Supply Driver DIY Projector

150W 19500 lumin LED Light Engine

This LED is customized LED with high quality material, chips, copper back plate, gold wire which ensure it long life without degrading quickly. Performance wise this will give you very bright light output and as this LED chip arrangement is closer, the output will be more sharper than traditional wider chip arrangement LEDs.

We have thoroughly tested this 150W LED with our Heat sink in Indian weather conditions and found very successful. The Temperate was under 38 degree only and Delta was 6 Degree only. So need not worry about heat when used our heat sink.

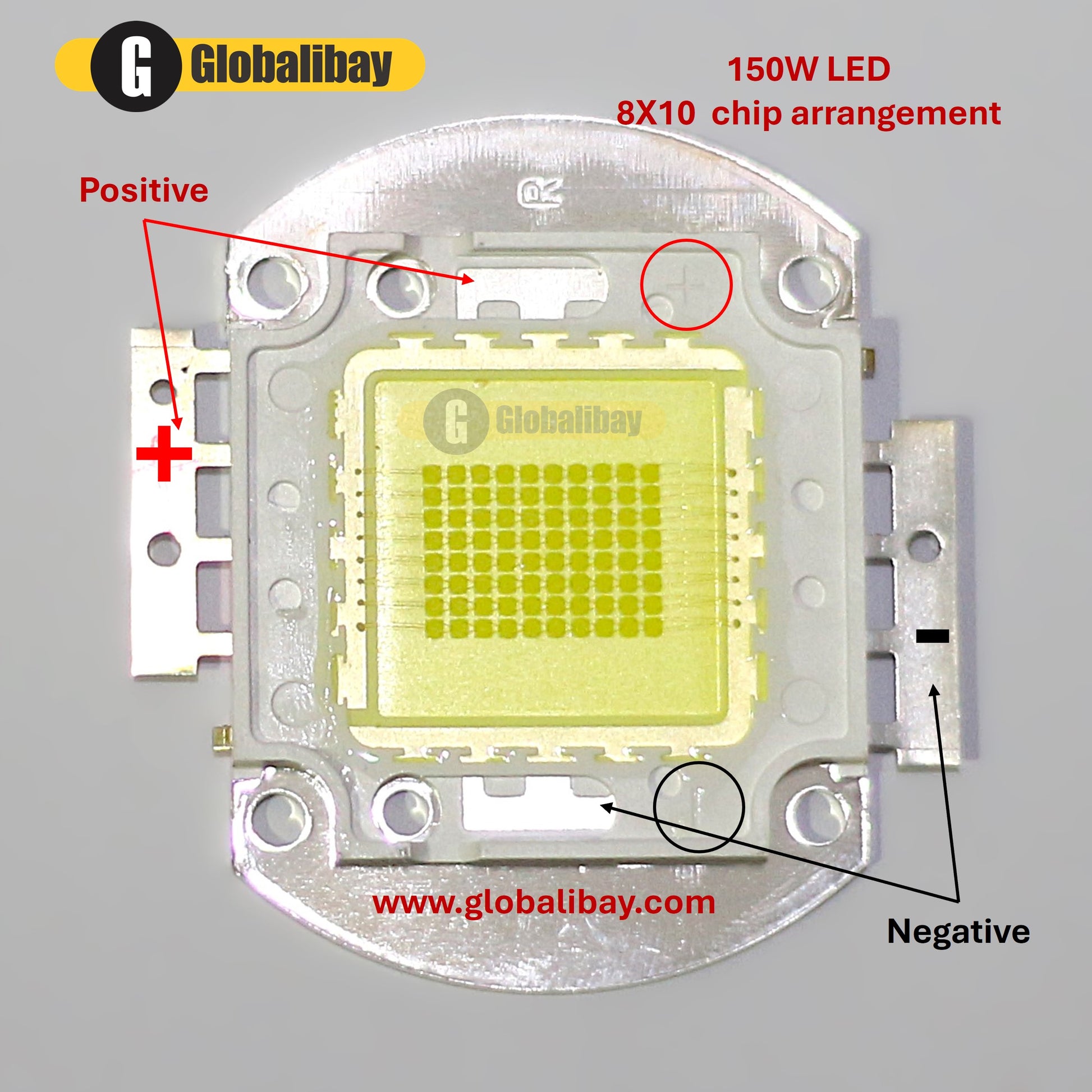

LED Features:

1. Lumens :19500 Lumens LED array: 8X10
2. LED Chip Dimention: 19mm X 11mm
3. Voltage: 32-36V
4. Current 4.5A

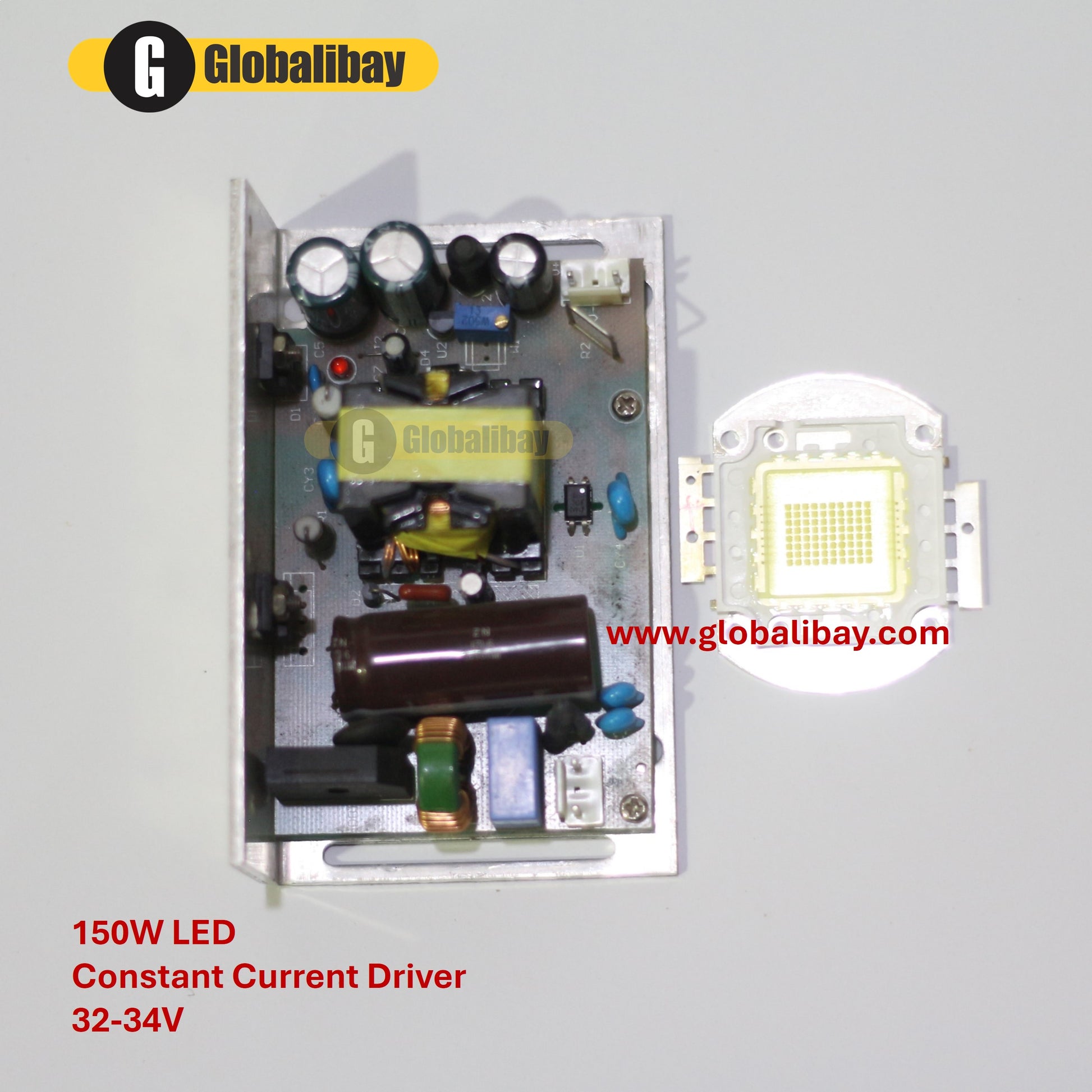

Power Supply Features:

1. Watt : 150W
2. Input Voltage: 110-240V
3. Output Voltage : 28-36V (Power supply automatically set Voltage as per LED)
4. Amps : 2.5 to 4.5 Amps Max (Current Adjustable between 3-5 Amps)
5. Size: 110X70X45

Constant Current Open Circuit, Over Load, Short Circuit and Over Temperature Protection

This is High Power LED and Must be operated with very efficient cooling, after applying proper thermal paste.. We are not responsible for burns with inefficient cooling and Returns are refunds are NOT entertained. We Strongly recommend to use Illumina Heat Sink only for this LED safety.
