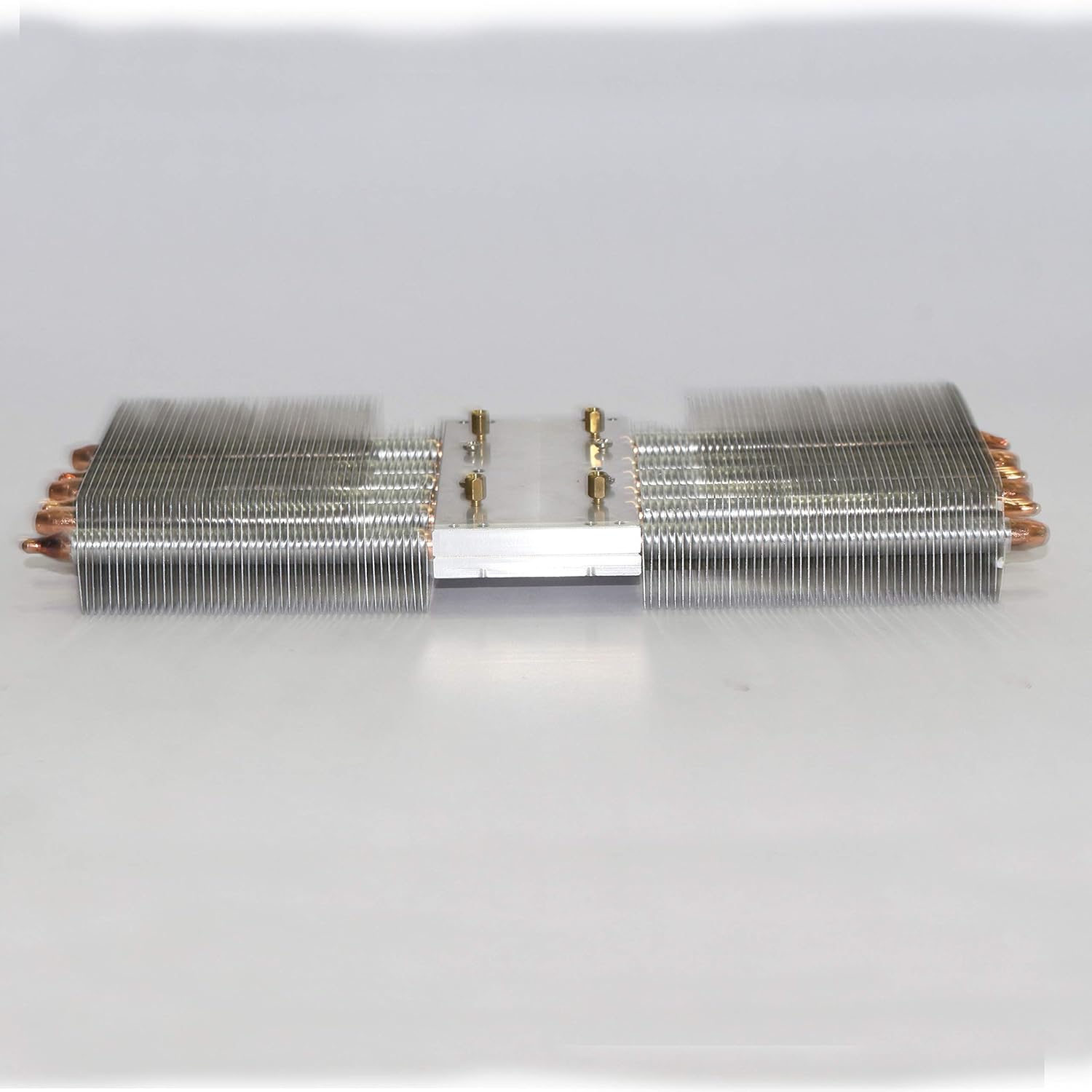

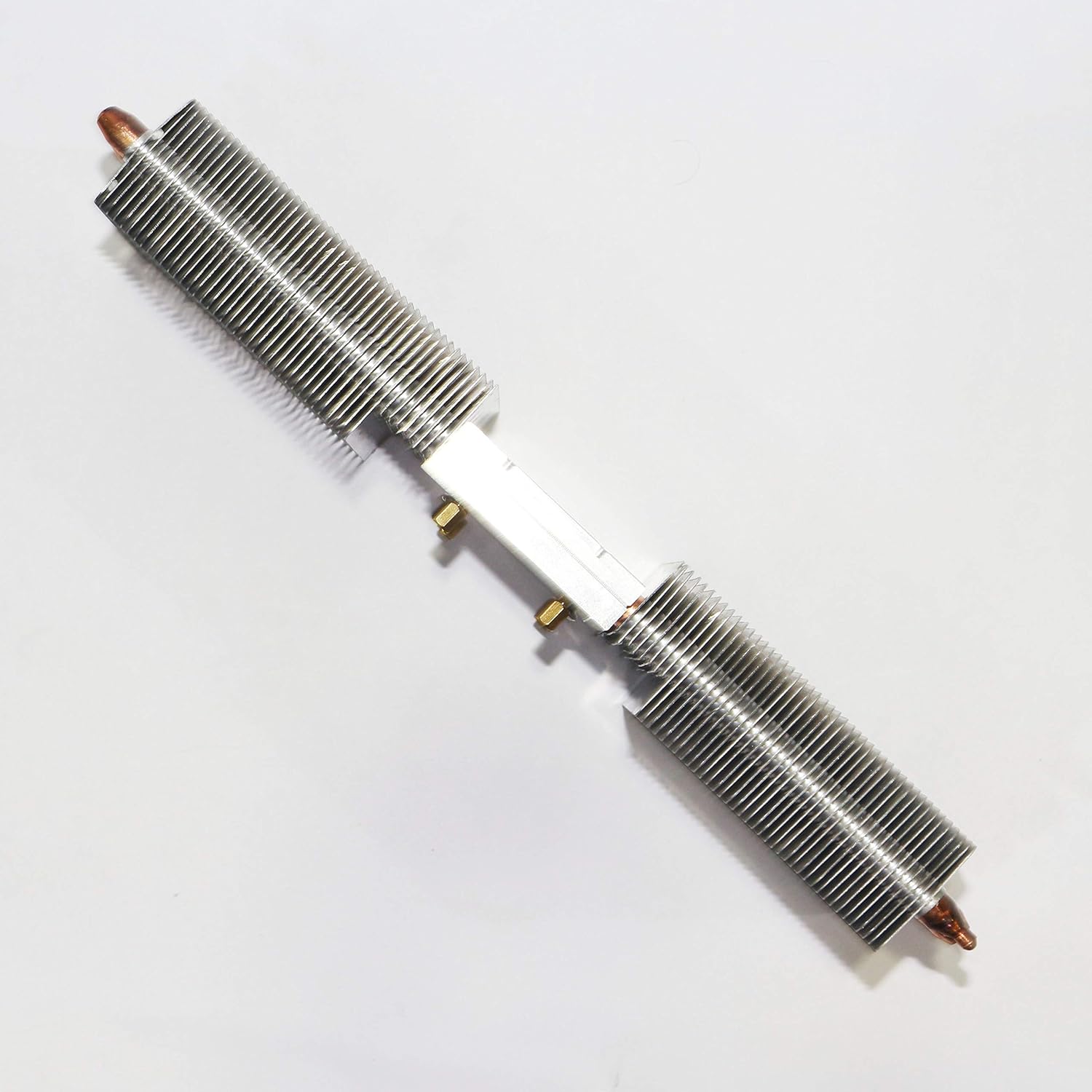

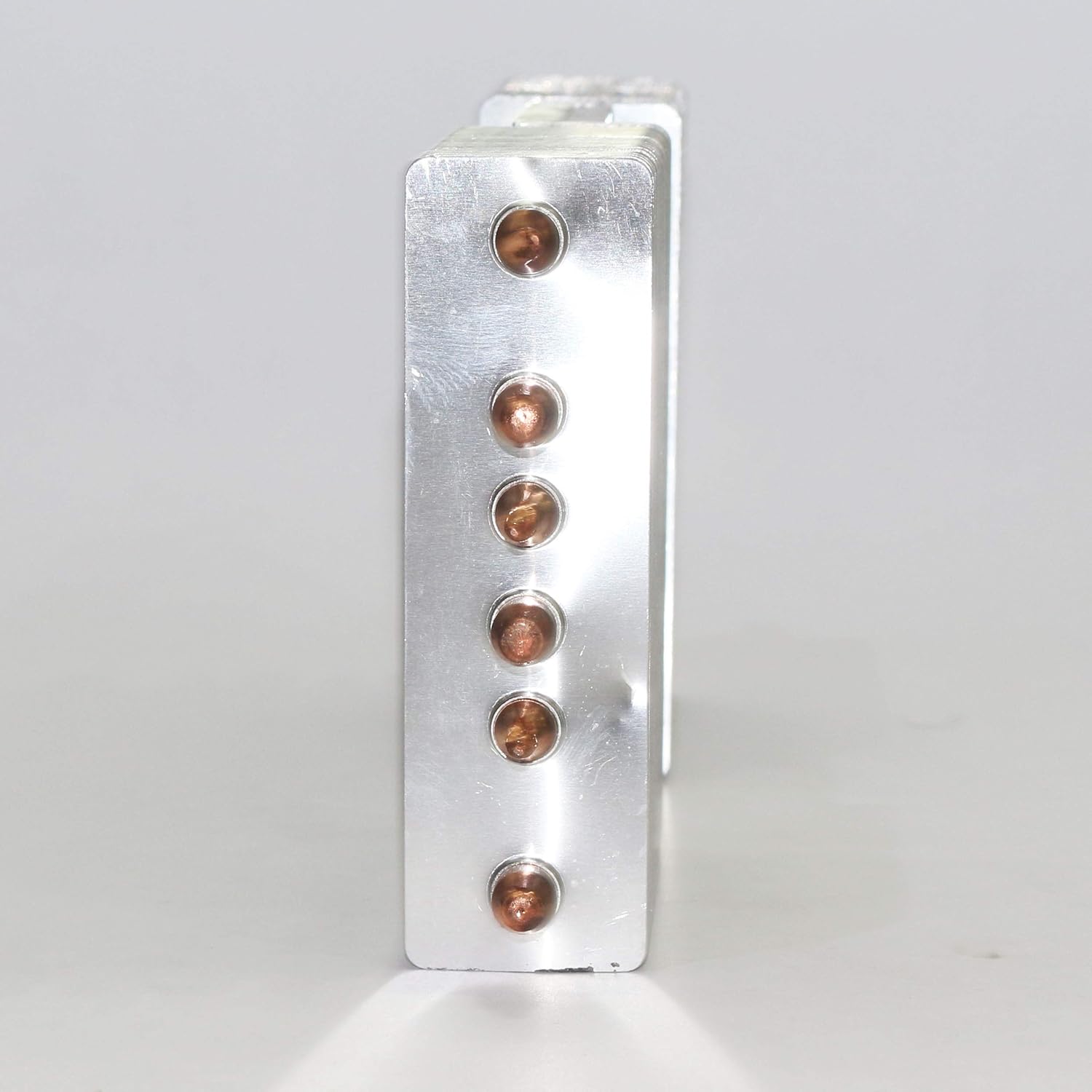

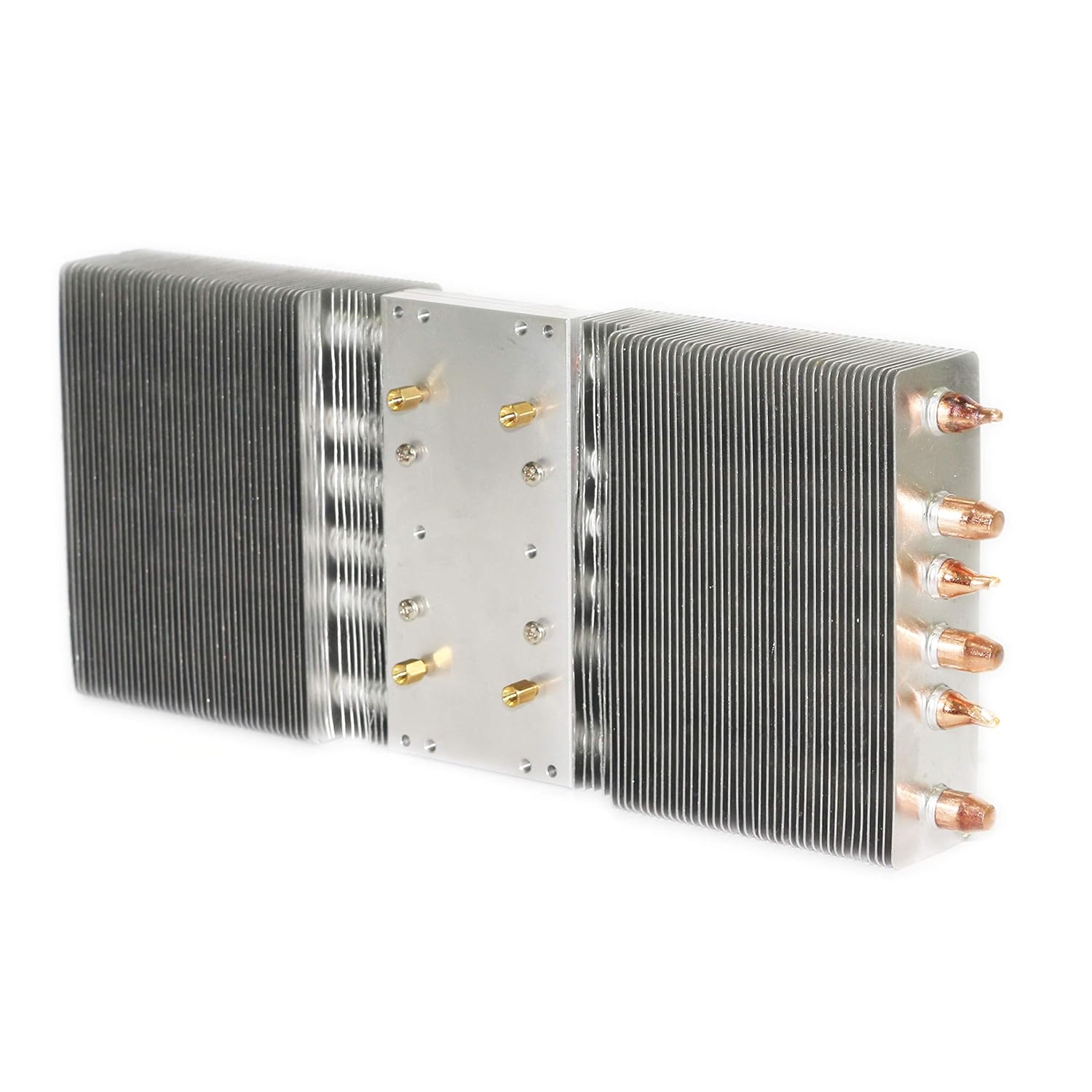

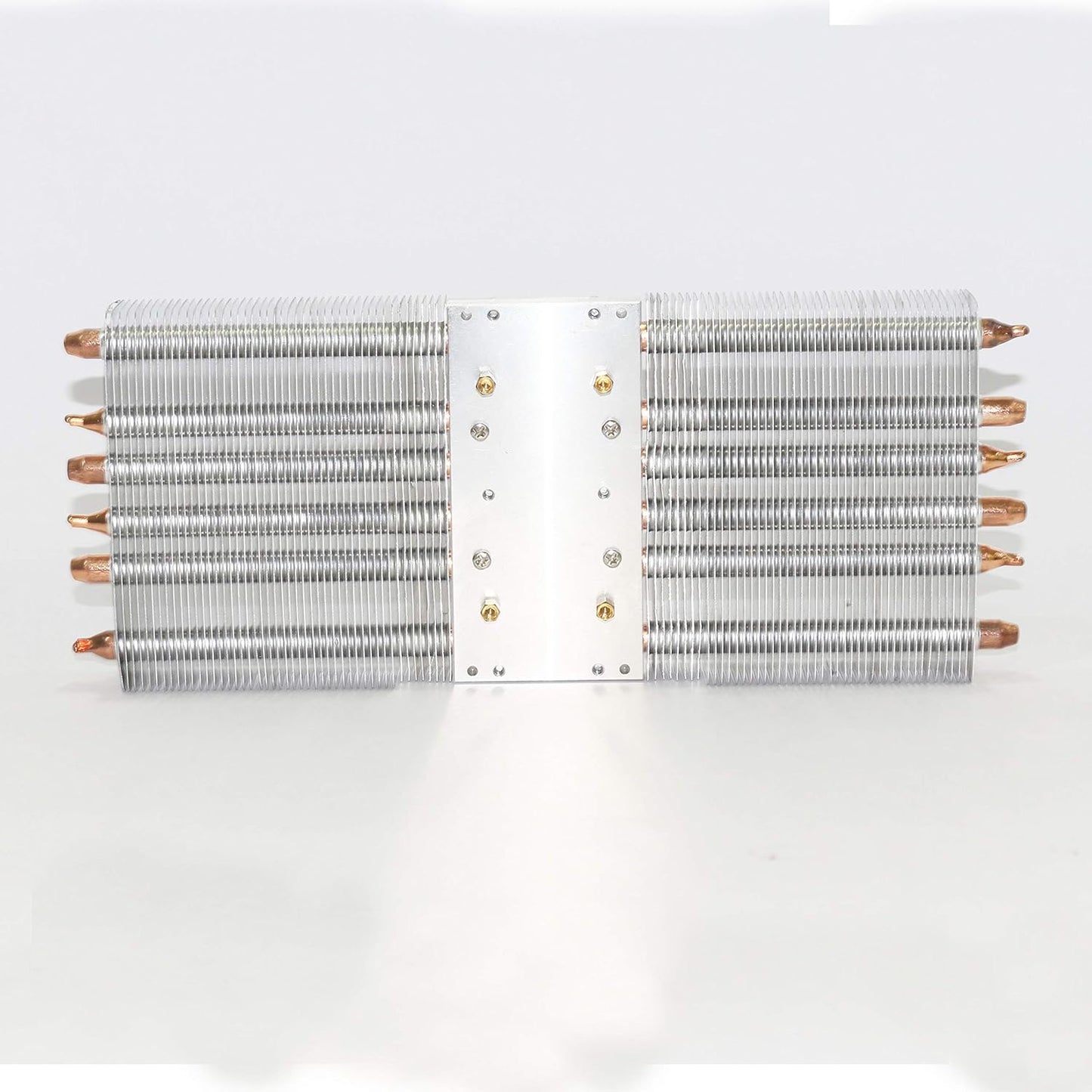

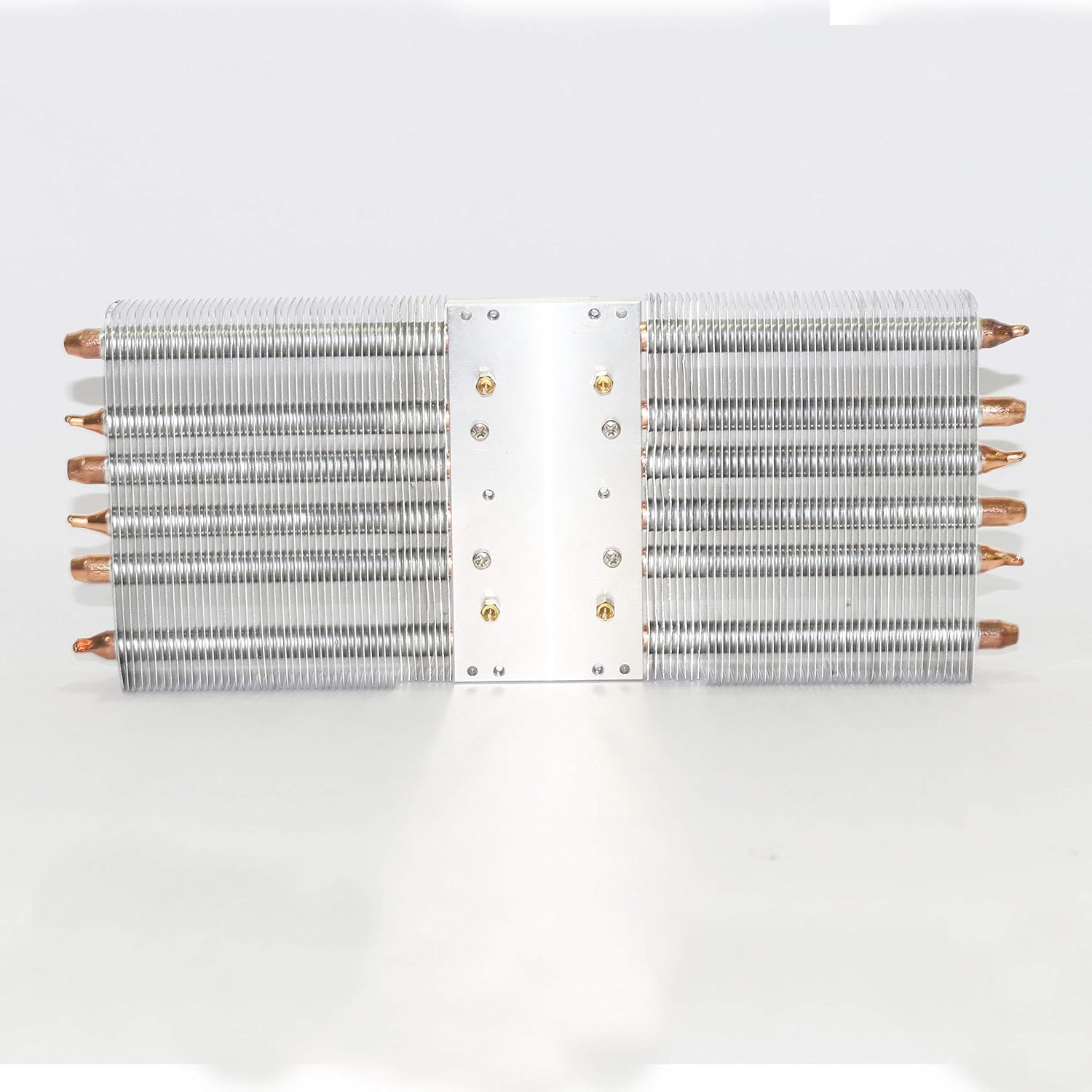

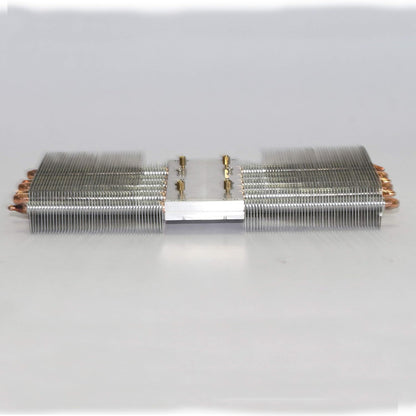

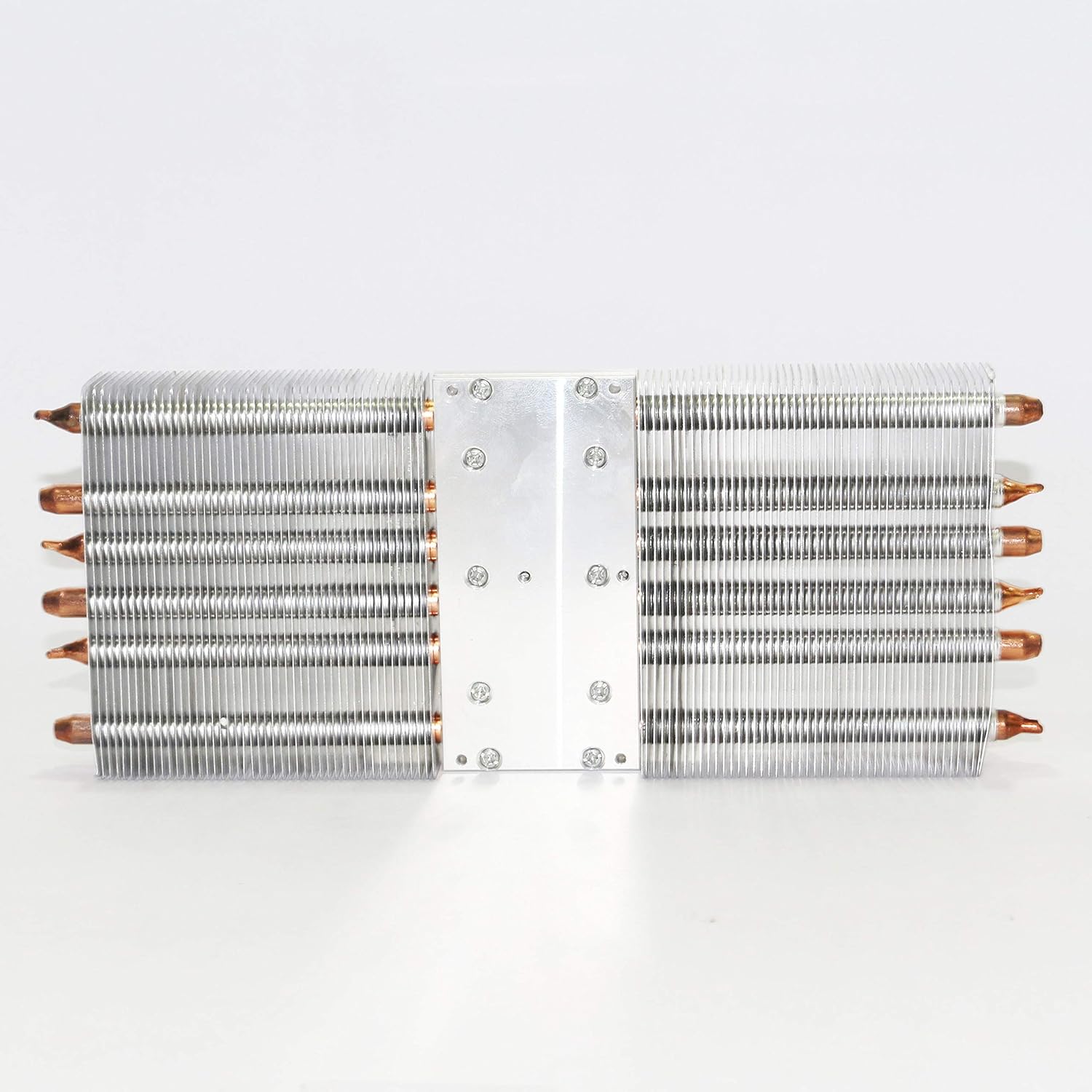

This is LED Heatsink for DIY Projector which was thoroughly tested and found successful in handling heat efficiently.. This Heat Pipe is capable of handling 210W LED easily in mid summer where ambient temperature is around 35-40. When we tested 128W LED at ambient temperature 33 degree, and LED operated at full load, the Temperature of LED was just 39 degree, ie., Delta was only 6 Degree. Running LED at such low temperature will increase the life of LED and LED will produce good Colours for long time..
Further, this is also tested with 208W LED where Ambient was 28 degrees, LED was running at 36.3 ie., delta was just 8.3 degree.
Recommended Fans Specifications:
Size: 92X92X25mm Brand : Sanyo Denki RPM : 2500 CFM: 100 Noise: 17 dBa (very low Noise ) Power: 12v 0.17 Amps Wires: Black is -ve, Red is +ve Pin: 4 Pin. Operating Temperature: - 20 to + 60 degrees
