Globalibay Fresnel Lens for Shortest DIY Projector Focal Length 120mm India

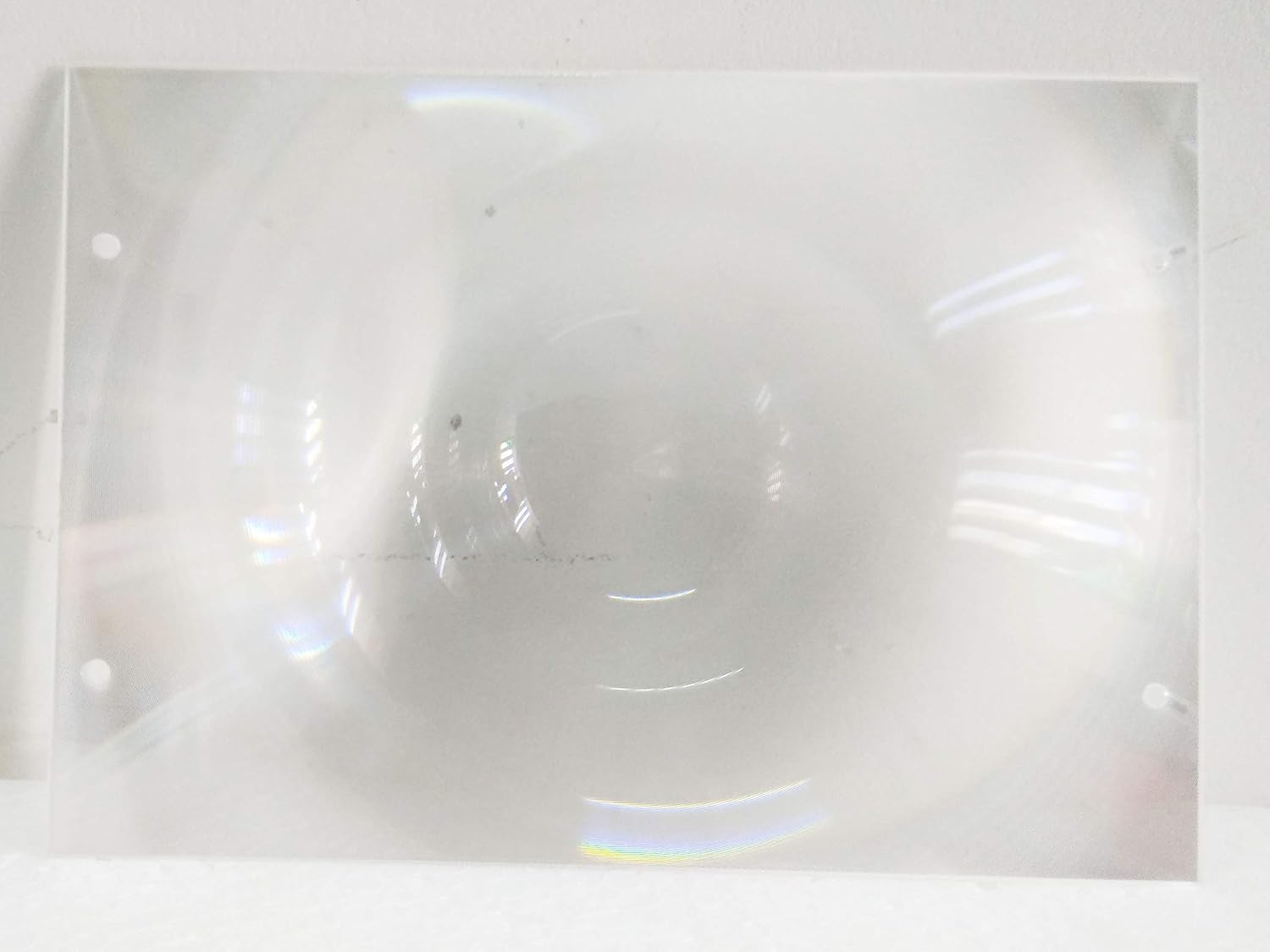

F120 Fresnel Lens

Description:

The Fresnel lens reduces the amount of material required compared to a conventional lens by dividing the lens into a set of concentric annular sections. An ideal Fresnel lens would have infinitely many such sections. In each section, the overall thickness is decreased compared to an equivalent simple lens. This effectively divides the continuous surface of a standard lens into a set of surfaces of the same curvature, with step wise discontinuities between them.

Features:

Based up on the method of Fresnel lens make.. the transparency of Fresnel impact.. and we will ensure we get highest transparent Fresnel available for our customers. the small fraction of difference in transparency will give big impact on out put brightness.


We further customized and made this available with mounting hole.. so its even easier for mounting Fresnel. No need of separate frame for holding this Fresnel,.. if you are very much comfortable with Frames only, then you can cut as per your size..


Material: PMMA
Focal Length: F120mm
Groove pitch: 0.30mm
Thickness: 2mm

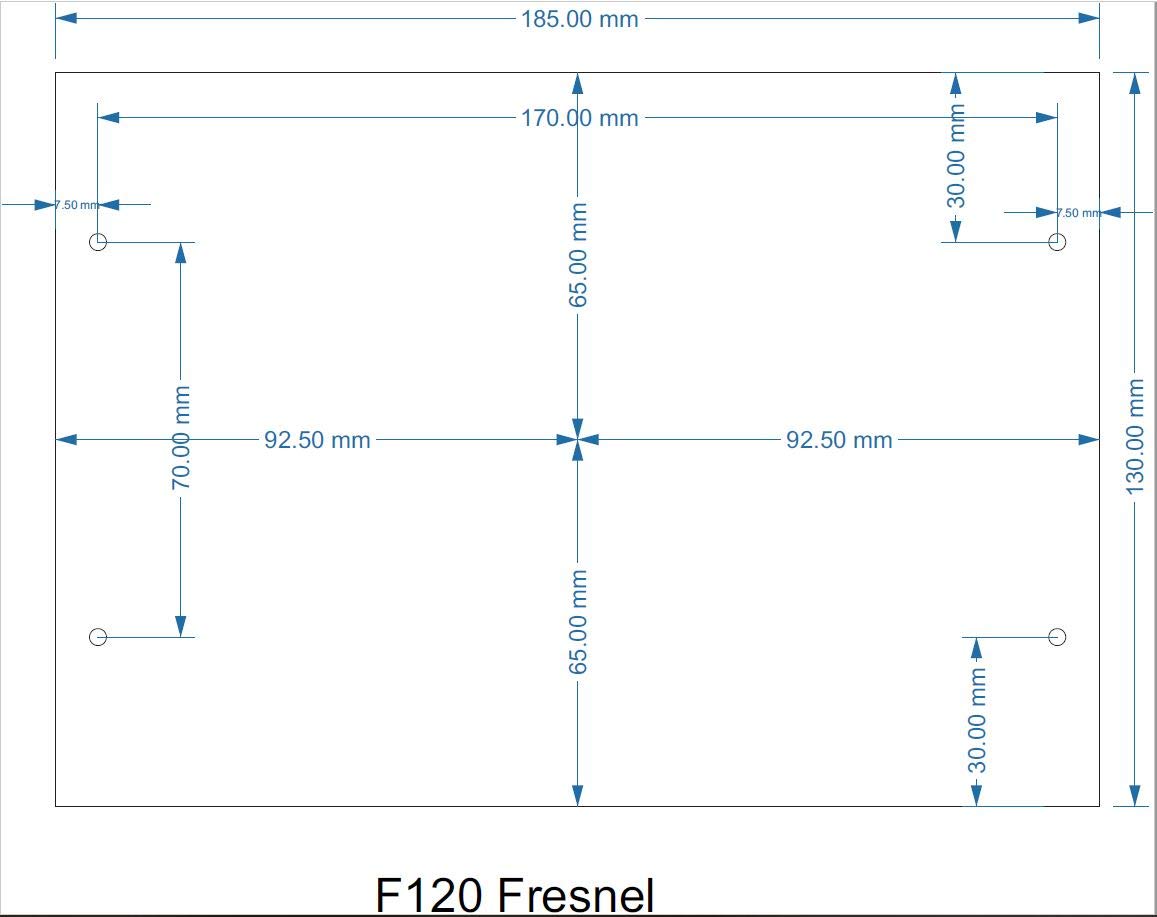

Dimension: 185X130mm (suitable for 7" LCD)

We are DIY Projector Hobbyist having in-depth knowledge about all the components for excellent output, We put our experience to get you the latest and best quality products in all aspects. Please reach us for any clarification in building your own projector.
